PoolLab-Kit

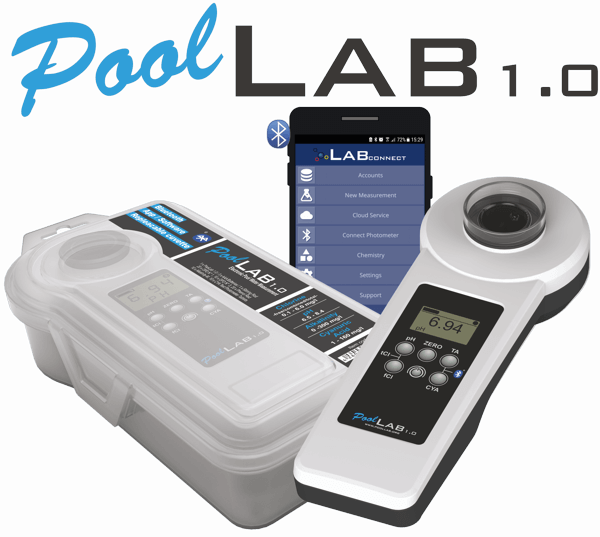

PoolLab® 1.0 - Photometer

The new PoolLab® 1.0 is a triple wavelength photometer for professional water analysis of private pools and spas.

An in-built but changeable cuvette allows quick water sampling by just dipping in the IP68 waterproof PoolLab®.

PoolLab® with its 6 buttons is designed for instant access to the parameters installed, which are: pH, Chlorine (free/combined/total), Alkalinity (Acid Capacity), Cyanuric Acid (Stabilizer). Active Oxygen (MPS), Bromine, Chlorine Dioxide, Ozone, Hydrogen Peroxide, Total Hardness, Calcium Hardness, Urea and PHMB.

As PoolLab® uses wireless Bluetooth 4.0 technology, it can easily be connected to free software and app for test result management. Once test results are synchronized, software and app allow dosage recommendations, based on individually entered water treatment chemicals. User can print test result reports, perform index calculation, such as LSI, and much more.

A free cloud server takes care that data on app and software are constantly synchronized, if the user decides to use this feature.

mg/l (ppm) Range Reagent
pH value 6.50 - 8.40 pH Phenol Red Photometer
Chlorine (free/combined/total) 0.00 - 8.00 mg/l (ppm)
DPD N°4 Fotométer
DPD N°3 Photometer
Glycine 0.0 - 200.0 mg/l (ppm) CaCO3 Alkalinity-M Photometer
Cyanuric Acid (Stabilizer) 0.0 - 160.0 mg/l (ppm) CYA-Test Photometer
Active Oxygen (MPS) 0.0 - 30.0 mg/l (ppm)* DPD N°4 Photometer*
Bromine 0.0 - 13.5 mg/l (ppm)**
DPD N°4 Fotométer
Glycine*
Chlorine Dioxide 0.00 - 11.40 mg/l (ppm)**
DPD N°4 Fotométer
Glycine*
Ozone 0.00 - 4.00 mg/l (ppm)**
DPD N°4 Fotométer
DPD N°3 Photometer
Glycine*
Hydrogen Peroxide LR 0.00 - 2.90 mg/l (ppm)* POL20CaH1*
Hydrogen Peroxide LR 0.00 - 200.00 mg/l (ppm)*
Acidifying PT Photometer*
Hyd. Peroxide HR Photometer*
Total Hardness 0.00 - 500.00 mg/l (ppm)*
POL20TH1*
POL10TH2*
Calcium Hardness 0.00 - 500.00 mg/l (ppm)*
POL20CaH1*
POL20CaH2*
Urea 0.1 - 2.5 mg/l (ppm)*
PL Urea 1*
PL Urea 2*
PHMB 5.0 - 60.0 mg/l (ppm)*
PL Urea 1*
PL Urea 2*
*requires reagent not included in basic kit
**requires Glycine reagent tablets if chlorine is present.
Glycine reagent tablets are not included in the basic kit

Basic kit

  • PoolLab® 1.0 - Photometer
  • Light shield
  • 3 x AAA batteries
  • Plastic stirring rod
  • 20 tablets DPD N° 1 (free chlorine)
  • 10 tablets DPD N° 3 (combined/total chlorine)
  • 20 tablets Phenol Red (pH)
  • 10 tablets Alkalinity-M (Alkalinity/Acid Capacity)
  • 10 tablets CYA-Test (Cyanuric Acid/Stabilizer)
  • Printed manual
All tablets are Photometer grade!
